Frigate Application Guide#

The MemryX + Frigate Control Center is your all-in-one platform for connecting cameras, configuring settings, and using Frigate for monitoring and analysis. This guide walks you through each step to help you get the most out of your Frigate setup.

Getting Started with Camera Setup#

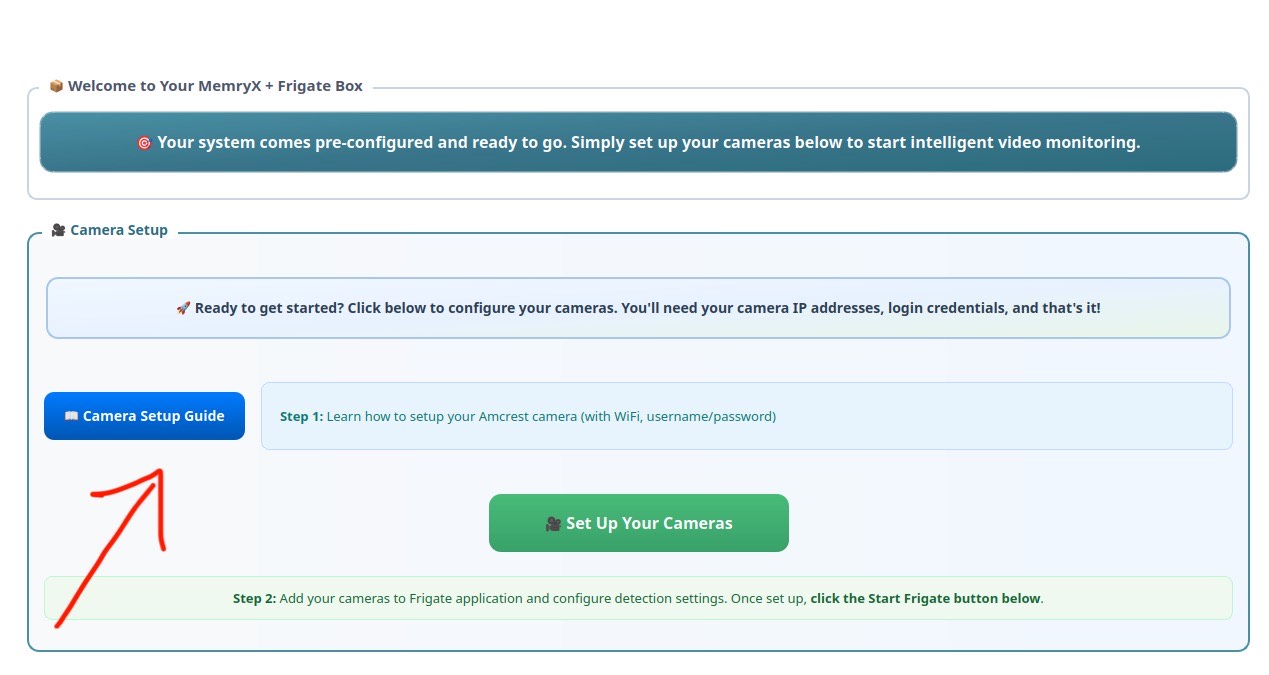

Camera Setup Guide

If you are using an Amcrest Wi-Fi camera, follow this guide to complete the setup:

Amcrest Camera Setup Guide

Note

Other camera brands: Refer to your camera’s manual or visit docs.frigate.video for RTSP configuration instructions.

Camera Configuration in Frigate#

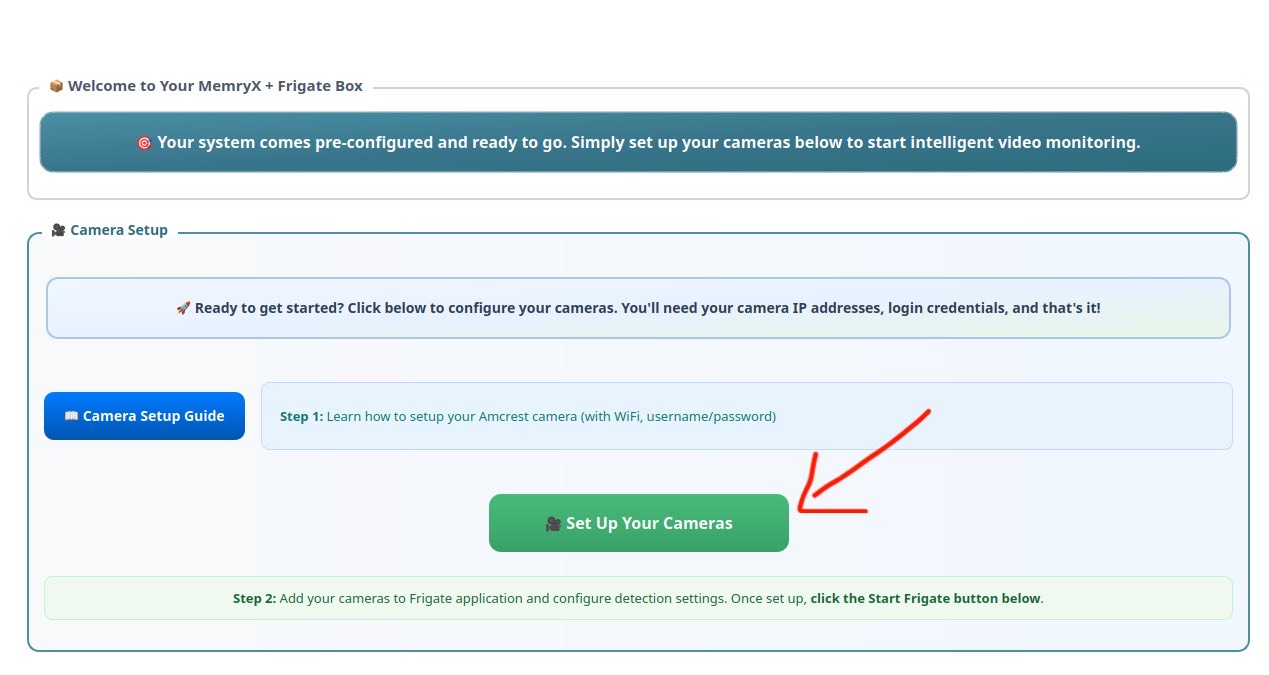

Once your camera is set up, click the “Setup Your Camera” button in the Frigate application to begin adding it to the configuration.

Camera Setup Button

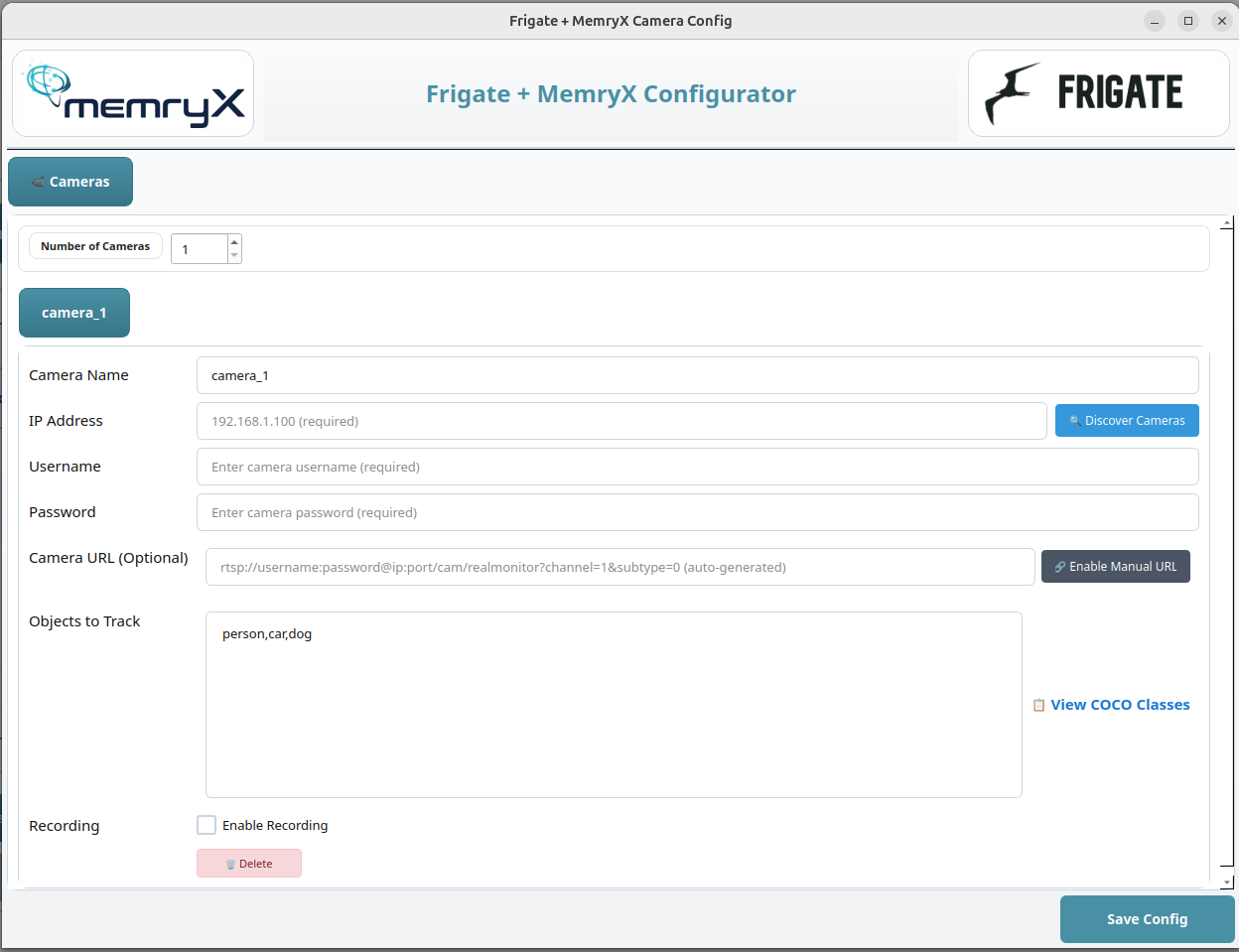

This opens the Camera Configuration Panel.

  • You can add or edit multiple cameras.

  • Configure each camera by entering the name, RTSP URL, username, and password.


Camera Configuration Interface

Camera Discovery:

Use the “Discover Camera” button to automatically find the IP addresses of available cameras.

Camera Discovery Interface

  • Click “Start Scan” to detect cameras, then select the correct IP address from the list.

  • After selecting a camera, enter its username and password.

  • The system will automatically generate the RTSP URL based on the camera model.

  • You can also click “Manual” to edit the RTSP URL or change the stream type (Main or Sub Stream).

Starting Frigate#

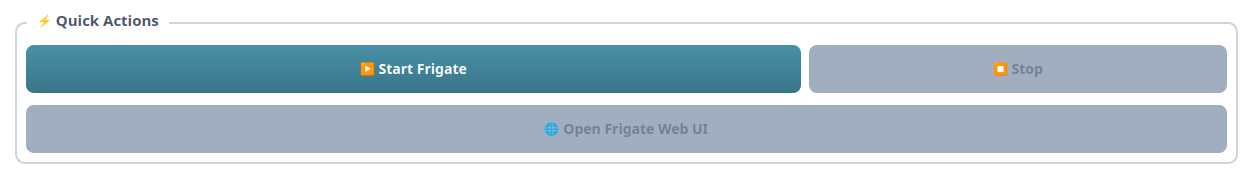

Click the “Start Frigate” button to begin launching Frigate.

Start Frigate Button

When you start Frigate, it will build and create a Docker container for the application. This process may take approximately 3 to 5 minutes.

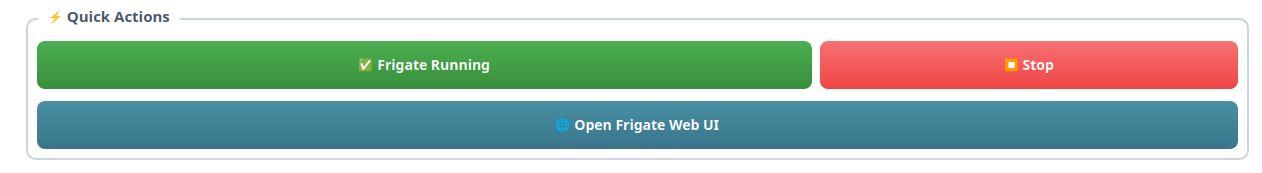

Once the Frigate Docker container is built and running, you will see the Quick Actions panel, which includes options to:

  • Open Frigate Web UI — to access the dashboard interface.

  • Stop Frigate — to stop the running container.

Quick Actions Panel

Using Frigate Web UI#

After Frigate starts, click “Open Frigate Web UI” to launch the dashboard in Firefox at `localhost:5000`.

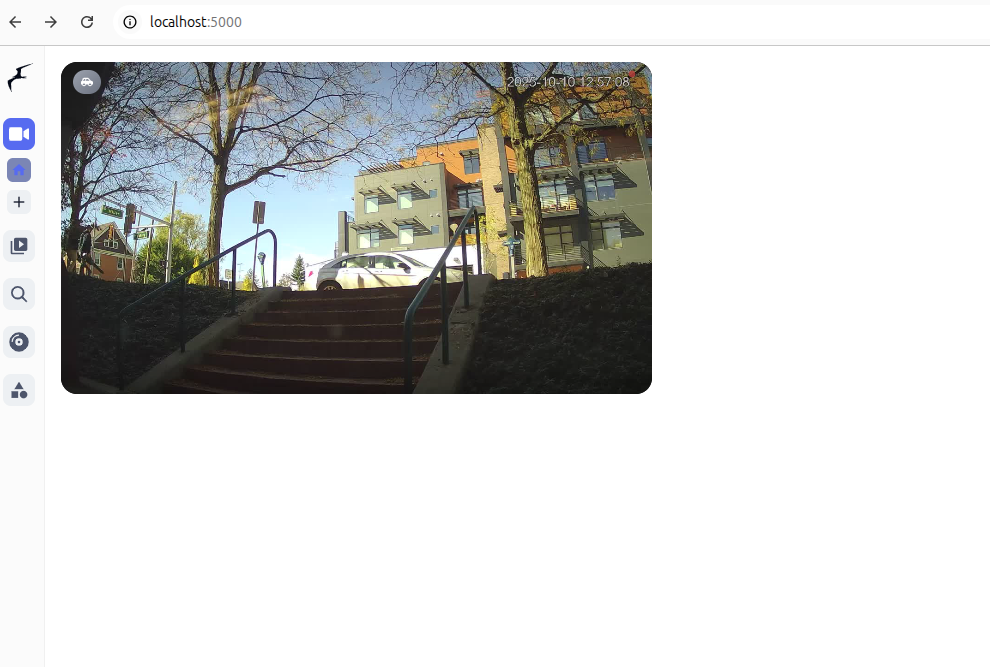

Frigate Dashboard

Live Camera View

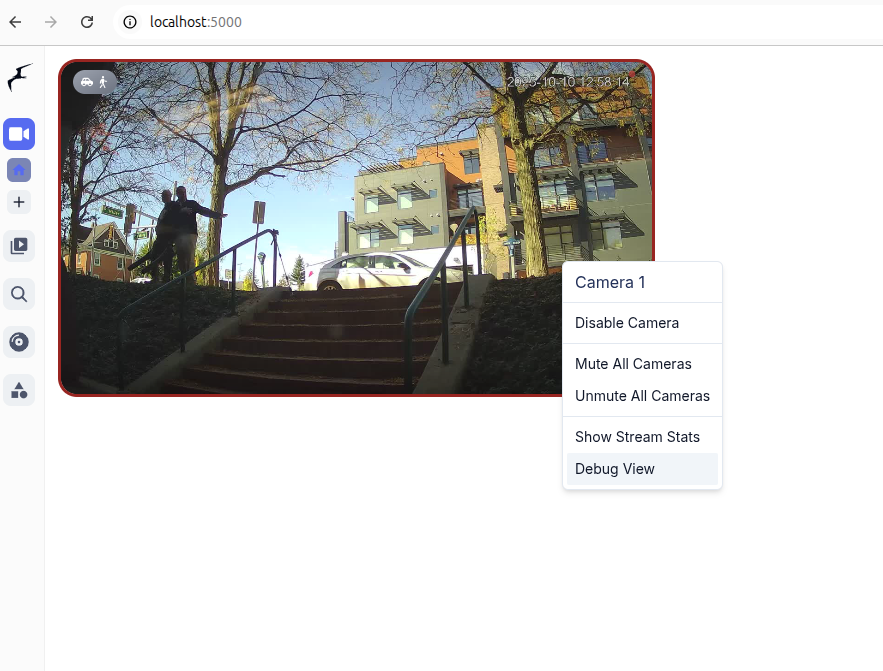

In the Frigate Web UI, you can view the live camera feed. Left-click on a camera and select “Debug” to access its debug options.

Camera Options

Debug and Detection View

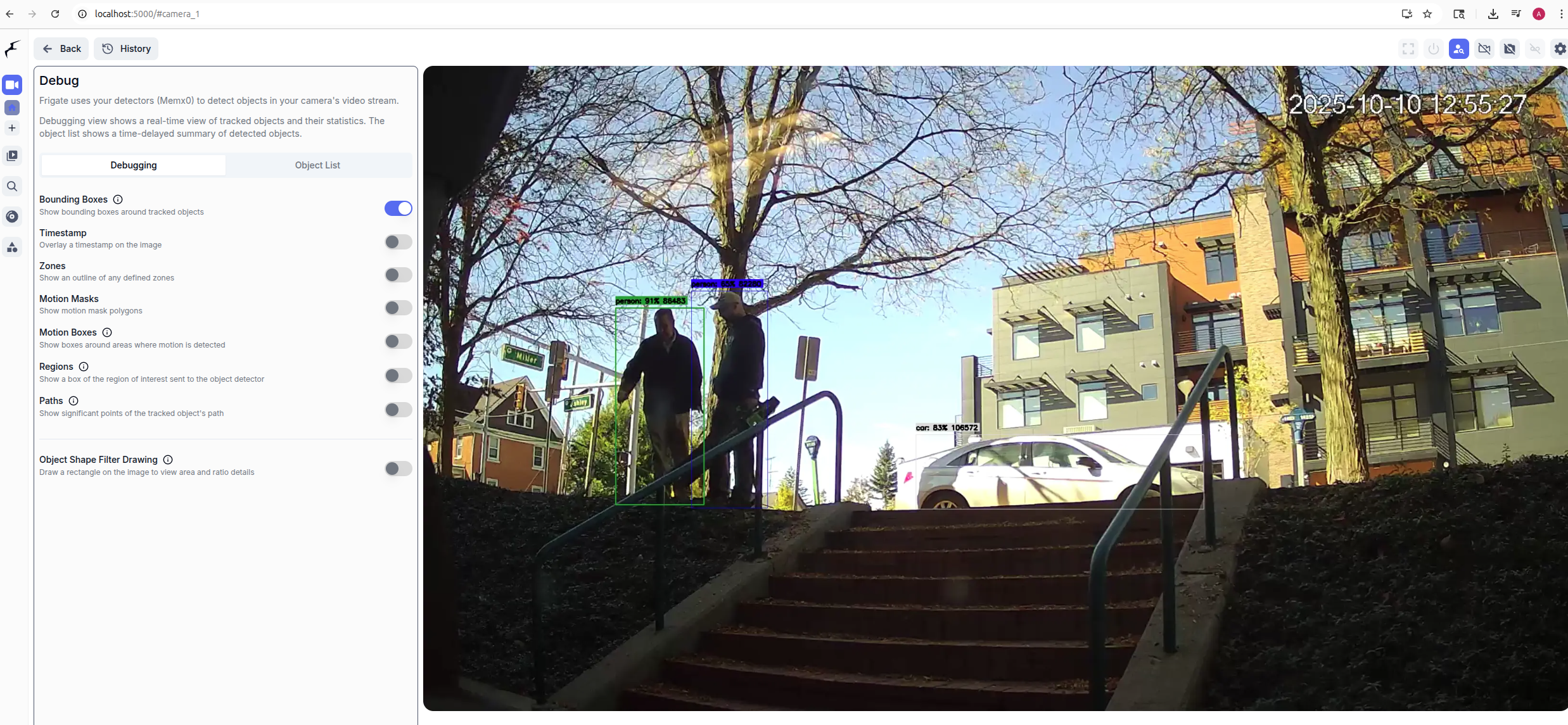

You can watch real-time object detection by enabling bounding boxes or selecting different debug options.

Debug Interface

Reviewing Recordings

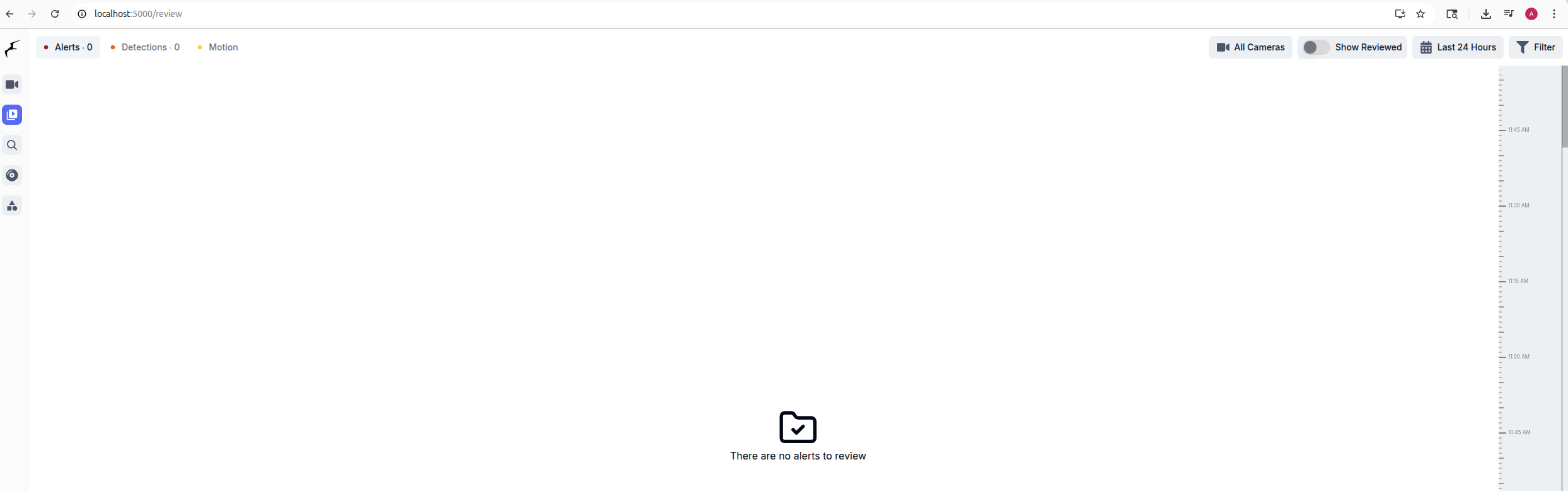

From the left-hand panel, click “Review” to browse recorded videos. You can sort recordings by date or detected objects for easier navigation.

Recording Review Interface

Checking Logs#

If you want to check the logs in the application, click the “Logs” button. This will open the Frigate Docker container logs, where you can view runtime messages.

Logs

Troubleshooting#

Common Issues

  • Application Won’t Start: Try manually launching it from the desktop icon.

  • Internet Connection Required: If Docker is not building, ensure your system is connected to the internet.

  • Camera Not Detected: Check the camera’s power connection and LED indicators.

  • No Camera Feed: Verify that the RTSP URL, username, and password are correctly entered in the camera configuration.

  • Detection Crash: If object detection fails or crashes, stop Frigate and restart it.

  • Frigate Not Recording: Make sure that recording settings are properly configured in the Frigate Web UI.
